- I-Transia overhead hoisting systems have been designed to cover the most commonly requested formats.
- Easy charging, place the hand control in its holder.
- Emergency lowering and stop facility.
- Snaphook for easy attachment of spreader bar.

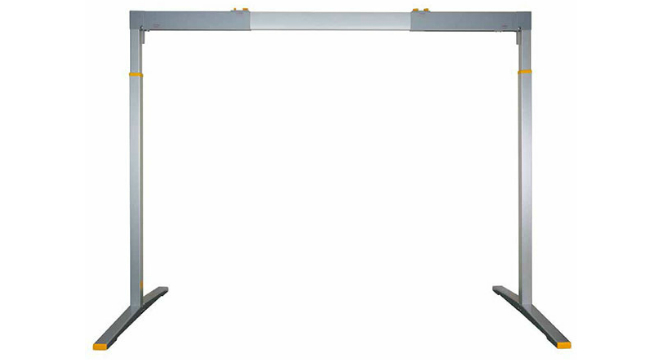

- Free standing gantry system, ideal for immediate needs such as hospital discharge.
-
Rails adjust easily in both height and width, providing a simple, effective way to deal with any need for a single track over bed solution.
-
Entire system can be set up or dismantled in just a few minutes.
-
Dimensions can be adjusted from 202cm to 282cm in height and from 272cm to 389cm in length (outer dimensions).
-
Inner tracking allows up to 250 cm of travel.
-
System interfaces with both 205kg (32 stone) and 250kg (39 stone) I-Transia ceiling hoist units.
-

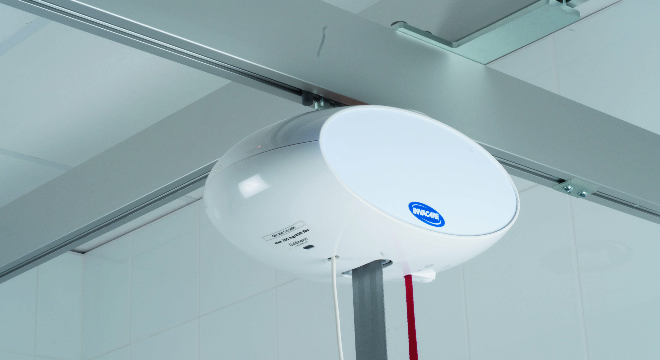

Single track system comprises a single rail which is fixed to the ceiling or a wall.
-
A single-track can be installed, up to 3 or 4 metres and takes the 205kg I-Transia ceiling hoists.
-
250kg hoists can be mounted on track up to 4 metres ceiling mounted and 3.5 metres if mounted to a wall.
-
Room covering (XY system) track system allows transfers to be carried out in any area of the room. Ideal for when flexibility is required.
-
Lifts per charge; approx 55. (user weight 85 kg, 1000 mm up/down).
- Lifting capacity: 250kg
